Produktbeschreibung Technischen Datenblatt Ergänzung
Lever: 20/10 metal.
Fixing bracket: 20/10 metal, 2 holes Ø 5.2 mm.
Adjusting bracket: stamped, 20/10 metal.
Hooking bracket; ribbed, 20/10 steel, hardened.
Hooking bracket counterpart: welded to the hooking bracket, 20/10 metal.
Locking spring: 12/10 cold-rolled strip.
Locking plate: riveted, stainless steel 18/8 in all cases.
Adjusting elements: 1 screw M6 x 30 in steel R. 80 crimped on adjusting bracket; 1 nut HU 6 in steel; 1 brake for nut in steel 6/10th; 1 knurled nut Ø M6 in steel; 1 fan washer AZ Ø 6 in steel.
Assembly elements: 1 Ø 4 mm stainless steel riveted pin; 1 Ø 3 x 4 mm stainless steel 18/8 rivet; 1 Ø 5 mm stainless steel 18/8 riveted pin.
Very robust.
Locking of the lever on the fixing bracket, resulting in a very high resistance to vibrations and shocks tending to open the toggle.
Possibility of sealing.
Adjustment of the tension during use, allows to compensate for the weakening of the seals. On request, it is possible to equip this toggle with different lengths of hooks (2 lengths are available in stock).

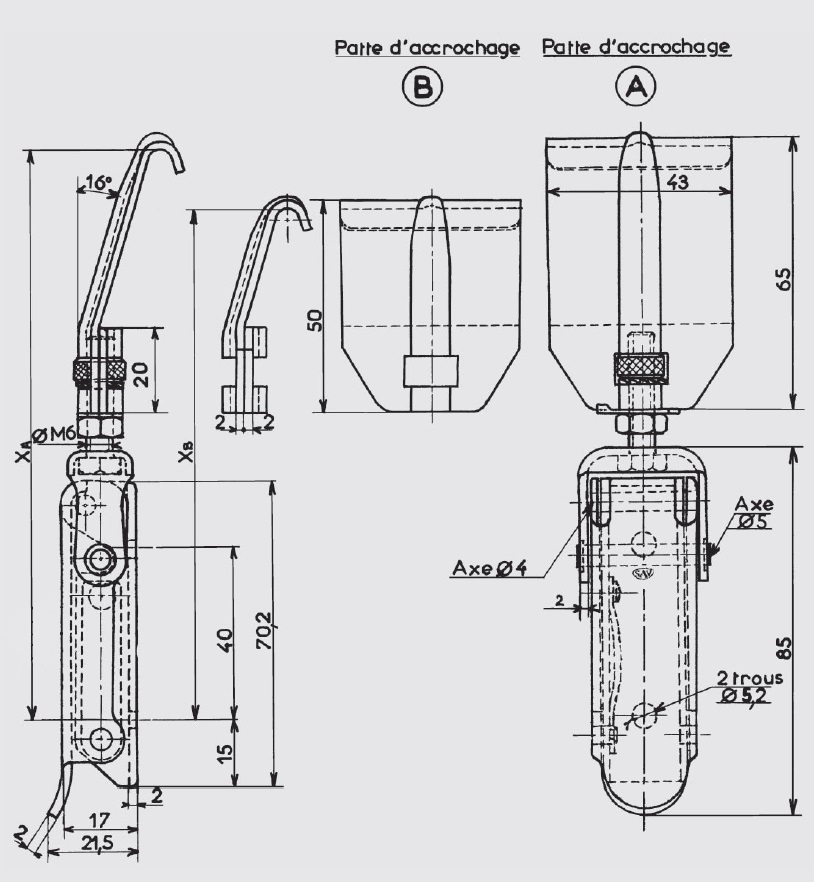

Dimension XA varies between 135mm and 146mm
- Link A
Dimension XB varies between 118mm and 129mm
- Link B
Maximum operating tension: 250daN
Ultimate tension: 600daN
Recommended catch plate: Type AC 151
Adjustment range: 18.0mm
Lever: Metal Thickness 2.0mm
Base: Metal Thickness 2.0mm
Link: Metal Thickness 2.0mm
Download der IGS Datei
MATERIALFERTIGUNGBEFESTIGUNGGEWICHT
THEORETISCH kg/HUNDERT
REFERENZAUSGESTATTET MIT
Edelstahl 18/8Rohmit Bohrungen18,400GR.57-IBAufhängebügel A
StahlBichromat-Zinküberzugmit Bohrungen18,400GR.57-ZB*Aufhängebügel A
StahlWeißer Zinküberzugmit Bohrungen18,400GR.57-ZIAufhängebügel A
StahlBichromat-Zinküberzugmit Bohrungen17,200GR.57-EZB*Aufhängebügel B
StahlWeißer Zinküberzugmit Bohrungen17,200GR.57-EZIAufhängebügel B
Edelstahl 18/8Rohmit Bohrungen17,200GR.57-EIBAufhängebügel B
* Artikel auf Anfrage gefertigt
