Produktbeschreibung Technischen Datenblatt Ergänzung
Allows positional misalignment.
Latch always under tension.
Fail safe design prevents over extension of the link
P30 has a spring safety lock - particularly recommended for equipment subject to vibration.
P94 has padlock hasp and is supplied without the spring safety lock.
Possibility of sealing.
A version having a key lock is available - GP 1030
Robustness.
Locking of the lever on the bracket resuls in very high resistance to vibration and shock tending to open the toggle.
Possibility of sealing.
Very good flexibility of use.
Extended positioning capabilities.
(1) These models are not equipped with spring locking.
Lock variant: cam lock beater cylinder, supplied with 2 keys.

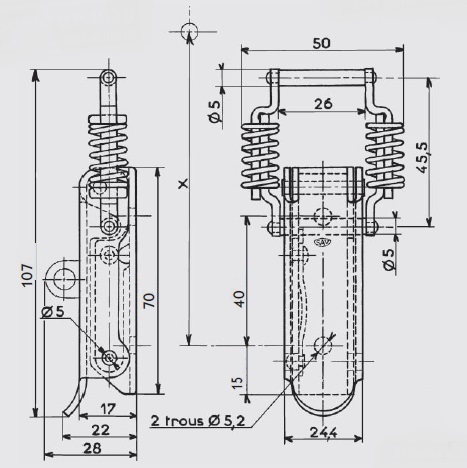

Approximate fixing position to give 35daN tension, using catch plate AC 144
x = 102.5
Maximum operating tension: 45daN
Recommended catch plate: AC 144
Lever: Metal thickness 2mm
Base: Metal thickness 2mm
Link: Side bars 2.5mm thick
Locking pin 5mm dia.
Download der IGS Datei
MATERIALFERTIGUNGBEFESTIGUNGTHEORETISCHES GEWICHT
KG/HUNDERT
REFERENZ
Stahl Bichromat-Zinküberzugmit Bohrungen12,500GP.94-ZB*
Stahl Weißer Zinküberzugmit Bohrungen12,500GP.94-ZI
Edelstahl 18/8 Roh mit Bohrungen12,500 GP.94-IB
* Artikel auf Anfrage gefertigt

Passendes Zubehör
