Welded link gives great strength.
Supplied with or without spring safety lock - particularly suitable for equipment liable to vibration.
Supplied with or without padlock hasp.
Possibility of sealing.
Suitable for screw fixing or welding. Spring safety lock requires positive action to release latch.
Great robustness
Possibility of sealing
supplied with spring safety lock (particularly suitable for equipment liable to vibration)

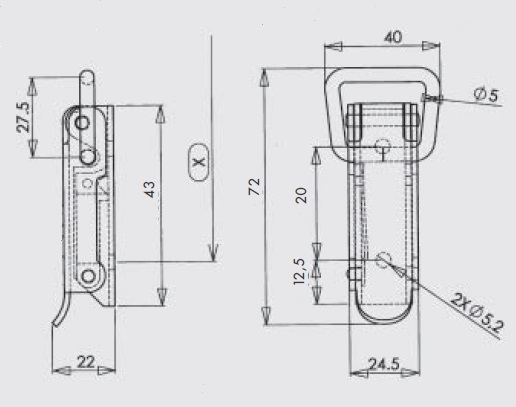

Approximate fixing position to give 150daN tension, using catch plate AC 144
x = 59mm
Maximum operating tension: 250daN
Recommended Catch Plates: Type AC 144
Lever: Metal Thickness 2.0mm
Base: Metal Thickness type 2.0mm
Link: 5mm diameter wire, welded
